Flow Measurement and Bubble Detection in Blood Purification: Key Technologies for Enhancing Safety in Extracorporeal Circulation/Blood Purification

Blood purification technology has become a core treatment method for metabolic diseases, renal failure, and critically ill patients. From blood purification to Continuous Renal Replacement Therapy (CRRT), the blood purification devices draw the patient's blood out of the body, remove metabolic waste, excess fluid, and toxins through an extracorporeal circulation system, and then return the purified and balanced blood to the body, significantly improving patient survival rates and quality of life.

Flow instability and bubble risk during extracorporeal circulation are two major challenges: flow fluctuations can lead to inefficient treatment or increased organ burden, while bubbles entering the bloodstream can cause fatal complications such as air embolism.

According to clinical data, inaccurate flow rate measurement can lead to high fluid removal deviations, and bubble misjudgment will cause false device alarms. These challenges highlight the critical importance of flow rate measurement and bubble monitoring.

To address these challenges, advanced flow and bubble monitoring technologies have become key to enhancing the safety of blood purification devices. XY-TEK CG Series Ultrasonic Flow Sensors / flow meters support non-contact measurement of dialysate and blood flow rates, providing real-time, accurate flow feedback for dynamic adjustment of pump speeds and valves. With built-in bubble detection features, the flow sensors can accurately identify bubbles in the tubing and trigger real-time alarms.

I. Challenges in Flow Measurement and Bubble Detection in Extracorporeal Circulation/Blood Purification

Blood purification involves drawing the patient's blood out of the body, purifying it through a dialyzer or adsorption device, and then returning it to the body. Blood purification systems remove target substances through adsorption modules, but require precise control of blood flow to ensure adsorption efficiency. Blood is drawn from the arterial chamber, diverted to multiple adsorption modules, and then pumped back to the body after the purification. If the flow rate is unstable, the adsorption efficiency can drop significantly.

The balance between dialysate/substitution fluid supply and discharge, and the precise ratio of anticoagulant to blood flow rate, all require flow sensors to provide high-accuracy, high-repeatable flow rate measurement results at the ±3% level to ensure the smooth execution of the treatment process.

As a critical tool for treating ill patients, CRRT requires real-time monitoring of multiple parameters, including pressure, temperature, bubbles, and flow rate. Bubble misjudgment can lead to unnecessary alarms, affecting treatment efficiency. Failure to detect bubbles will lead the bubbles to enter the patient's body, forming emboli that block normal blood supply to organs, endangering patient safety and creating treatment risks.

In blood purification and CRRT equipment, flow measurement modules typically have the following requirements:

* Sterility Requirements: Blood purification flow sensors / flow meters must avoid direct contact with blood or medicinal fluids to prevent contamination and clotting risks.
* Adaptability to Complex Purification Liquid: Must be able to measure various media from saline and dialysate to substitution fluids, unaffected by changes in media color, transparency, or conductivity.
* Compact Size and Reliable Integration:Portability and ease of transfer are becoming trends for next-generation blood purification devices. With limited internal space, flow sensors need to be small, easy to install, and seamlessly integrate with the device control system.
* Anti-interference and High Reliability: The medical flow sensors / flow meters must continually output stable flow rate data and have extremely low false alarm rates in complex electromagnetic environments and during long-term clinical use.

II. Application Scenarios of Clamp-on Flow Sensors in Blood Purification
1. Flow Rate Measurement in Blood Purification---Balancing the in-out Flow

In Hemo-diafiltration (HDF) treatment, there are near-critical in-out balance requirements for the "inflow" of dialysate and the "outflow" of waste fluid. During purification, the amount of fluid removed from the patient's body is achieved by precisely controlling the difference between the dialysate supply volume and the discharge volume.
Deploying high-accuracy clamp-on ultrasonic flow sensors / flow meters on the dialysate supply circuit and discharge circuit, respectively, enables real-time monitoring of bidirectional flow.
CM Series Flow Sensors / Flow Meters can provide flow measurement accuracy of ±2%, offering a reliable data foundation for closed-loop dialysate control.

The non-invasive flow rate measurement features avoid potential reading drift or failure of traditional flow meters caused by crystallization or contamination, ensuring long-term measurement stability. In purification systems with redundant flow measurement, the CM Series Flow Sensors / Flow Meters can be used for cross-verification of flow results, further enhancing device safety levels.

2. The "Intelligent Sentinel" for CRRT – Integrated Bubble and Blood Leak Monitoring
Continuous Renal Replacement Therapy (CRRT) tubing is evolving towards high integration and intelligence.
Integrating CM Series Flow Sensors / Flow Meters into CRRT infusion lines enables real-time monitoring of anticoagulant flow. This provides critical flow data input for closed-loop anticoagulant control, dynamically adjusting pump speed to prevent insufficient anticoagulation (clotting) or overdose (hypocalcemia), significantly improving the safety of CRRT treatment.

CM Series Ultrasonic Flow Sensors can accurately identify tiny bubbles ≥ 1/3 of the tube's inner diameter. The flow sensor can form a closed loop with the CRRT control system to trigger an instant pump stop, preventing air embolism.

III. CM Clamp on Ultrasonic Flow Sensor Advantages
In the field of blood purification, traditional flow meters may be limited by the contact measurement method, which could cause blood contamination and pressure loss, leading to inaccurate flow rate results.

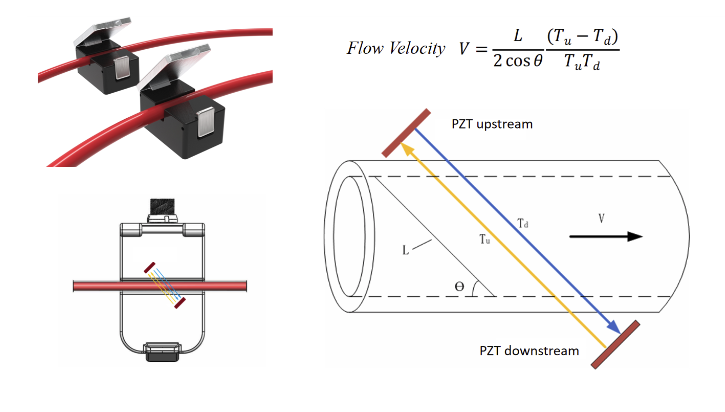

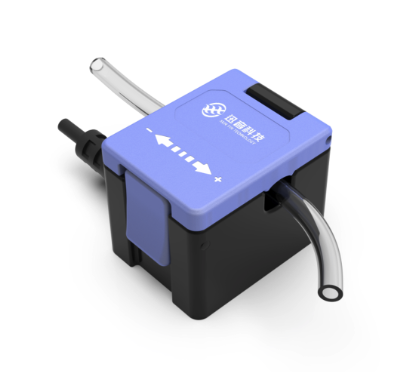

XY-TEK CM Ultrasonic Flow Sensors / Flow Meters, with the clamp-on design, offer an ideal flow rate measurement solution for blood purification devices. The flow sensor can be easily clamped onto the outside of the tubing, emits ultrasonic waves that penetrate the tube wall and fluid, and accurately calculates flow velocity and volume by measuring the time difference between upstream and downstream ultrasonic propagation.

1. No-contact, 0 Contamination: The flow sensor is completely physically isolated from the blood, dialysate, etc., eliminating the risk of contamination, cross-infection, or clotting caused by sensor intrusion, perfectly meeting the sterility requirements of purification medical devices.
2. No Pressure Loss, No Clogging: Does not alter the internal structure of the tubing and has almost no pressure loss, compatible with various precision peristaltic or piston pumps.
3. Capable of Measuring Various Media: Measurement accuracy is unaffected by fluid conductivity, transparency, color, etc. Stable measurement is possible for dialysate, substitution fluids, and blood.
4. Easy Installation and Maintenance: Clamp-on installation requires no cutting of tubing or interruption of the process, greatly simplifying device production integration and clinical maintenance. Compact size allows for easy placement within space-constrained devices.
5. Compatible with Various Tubing Materials: Supports flexible PVC or silicone tubing with outer diameters from 4-35 mm (support customization)
6. High Accuracy and Repeatability:Measurement accuracy ±2%, millisecond-level response speed, supports bidirectional flow measurement.
7. Durable, Easy to Integrate, and Robust: Utilizes corrosion-resistant housing materials, impact-resistant, supports multiple flow output methods for transmission to the main control unit.

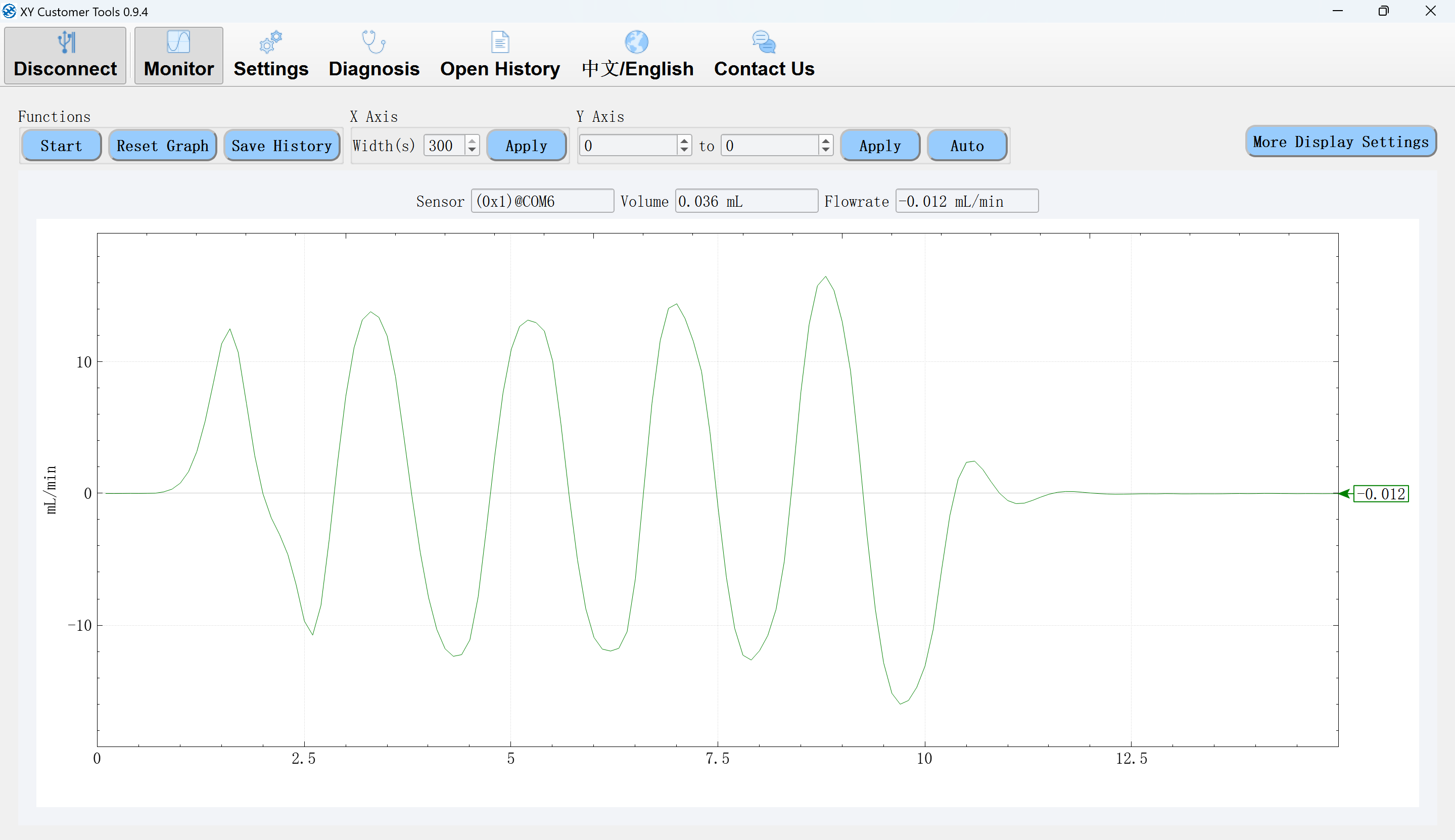

8. Intelligent Features: Equipped with real-time flow data reading software, providing real-time flow data logging to aid in intelligent device monitoring.

Stable, accurate flow rate measurement and reliable bubble detection form the solid foundation of building safe and efficient extracorporeal circulation systems.

XY-TEK CM Series Ultrasonic Flow Sensors / Flow Meters, through the non-invasive, high-accuracy flow measurement, and bubble detection function are becoming an indispensable "core component" in the blood purification devices, providing solid support for enhancing treatment safety, controllability, and device intelligence.
