Photovoltaic energy storage systems achieve efficient utilization and optimized distribution of electrical energy by cleverly integrating photovoltaic power generation with energy storage devices. Since storage devices generate substantial heat during charging and discharging cycles, cooling systems are typically required to maintain device stability and reliable operation.

In liquid cooling, accurate measurement of the coolant flow rate —such as pure water, ethylene glycol, and other coolants—is particularly critical.

XY-TEK CPD series ultrasonic flow sensors have gained widespread application in the PV energy storage industry due to their wear-free operation, high measurement accuracy, wide measurement range, and hygienic safety features.

Advantages of Ultrasonic Flow Sensors in the Energy Storage Industry

CPD series ultrasonic flow sensors employ the ultrasonic transit-time technology method, with the clamp-on design, enabling measuring the flow rate with non-contamination, making them suitable for various liquids including pure and deionized water.

In the photovoltaic energy storage scenario, the CPD series ultrasonic flow sensors are widely applied for their compact size, exceptional accuracy, excellent stability, and outstanding repeatability.

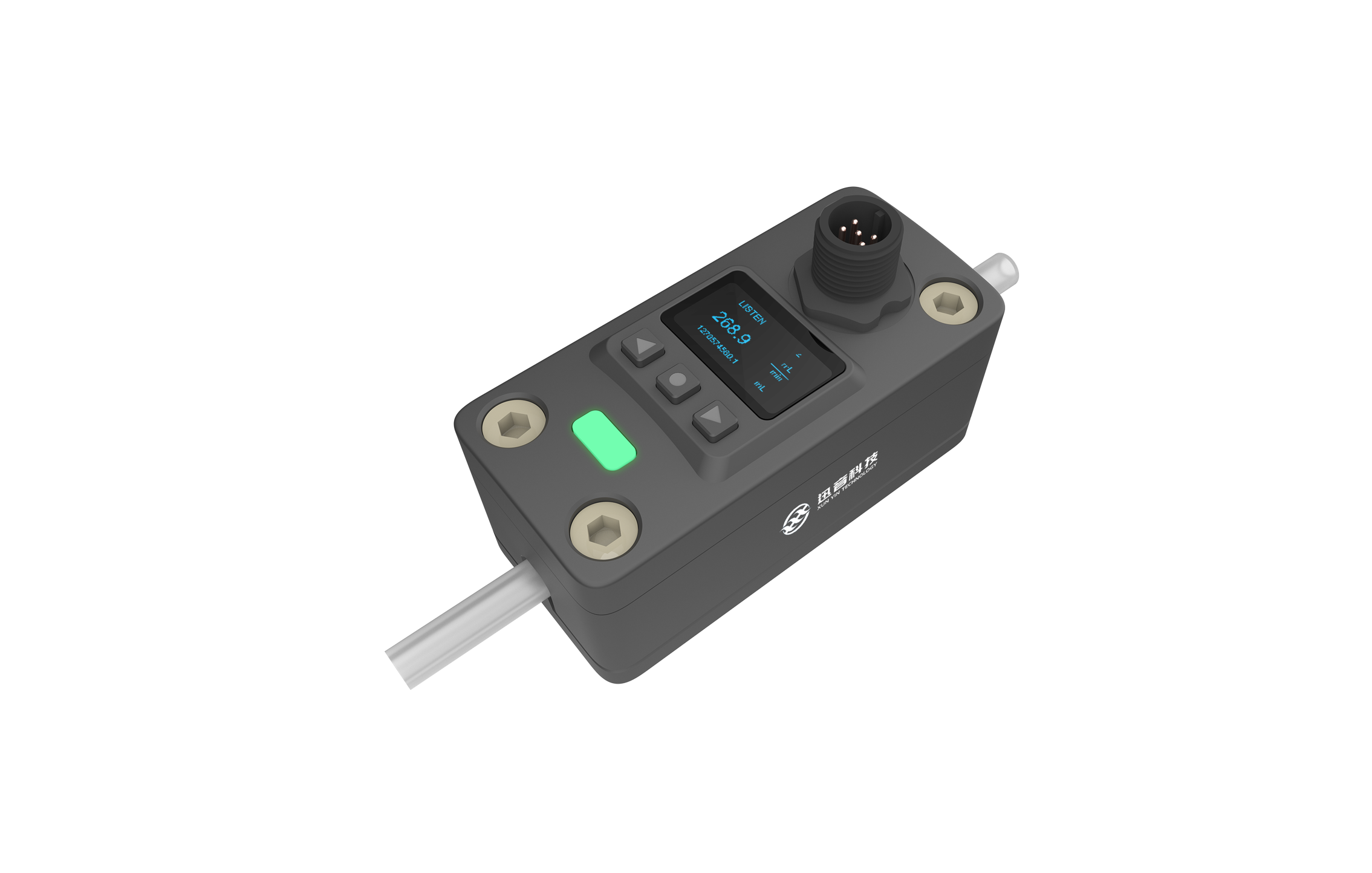

CPD series Ultrasonic Flow  Features

· Hygienic and Safe: The ultrasonic flow sensor does not directly interact with the fluid, eliminating any contamination on the media. The clamp-on design prevents leakage risks, extending the sensor’s service life.

· Repeatability Results: Measurement repeatability achieves ±0.5%, ensuring stable and reliable results.

· Multiple Communication Interfaces: The sensors support current, voltage, pulse, and Modbus output signals, enabling seamless integration with existing customer control systems.

· Easy Installation: The external clamp-on design allows for sensor replacement or upgrades without shutting down the system or disrupting existing tubing, reducing maintenance and operational costs.

· Wide Compatibility: Compatible with PFA, PTFE, and other rigid plastic tubing; suitable for measuring pure water, deionized water, and various other liquids.

Applications of Ultrasonic Flow Sensors in Energy Storage Systems

In photovoltaic energy storage systems, storage devices inevitably release large amounts of heat during charge-discharge cycles, requiring an efficient cooling system to dissipate heat.

XY TEK CPD series ultrasonic flow sensors play a critical role in this process with key applications including:

· Temperature Control: The CPD series sensors precisely monitor coolant flow to maintain the storage devices within ideal temperature ranges throughout charging and discharging. This prevents overheating, significantly prolongs device lifespan, and enhances system performance.

· System Monitoring: Real-time flow measurement of each cooling circuit enables effectively supervising pumps, valves, and tubing. Upon detecting potential blockages or leaks, the central control system quickly responds based on flow data, sending commands to actuators and triggering alarms to ensure continuous and stable operation as well as timely maintenance.

Through these applications, the CPD series ultrasonic flow sensors not only improve the safety and reliability of photovoltaic energy storage systems but also provide strong support for achieving higher energy efficiency and extended equipment life.

The CPD series ultrasonic flow sensors, with their exceptional high accuracy, non-invasive measurement technology, and real-time data transmission capabilities, offer precise flow monitoring solutions for fluid media in photovoltaic energy storage systems.

This significantly enhances system stability and operational efficiency, enabling real-time data analytics that drive PV energy storage systems toward intelligent operation and maintenance, aligned with Industry 4.0 standards, and fostering innovation and development in the photovoltaic energy storage sector.
